High Efficiency Wood Pellet Making Machine

Model Number: XGJ1200
Power: 710/800 Kw
Output: 10000 - 15000 kg/h
Pellet Diameter: 6-12 mm
Weight: 40000 kg
Dimension(L*W*H): 4700×3500×2400 mm
Feed inlet diameter: 900 mm
Certification: CE, ISO
Place of Origin: Shandong, China

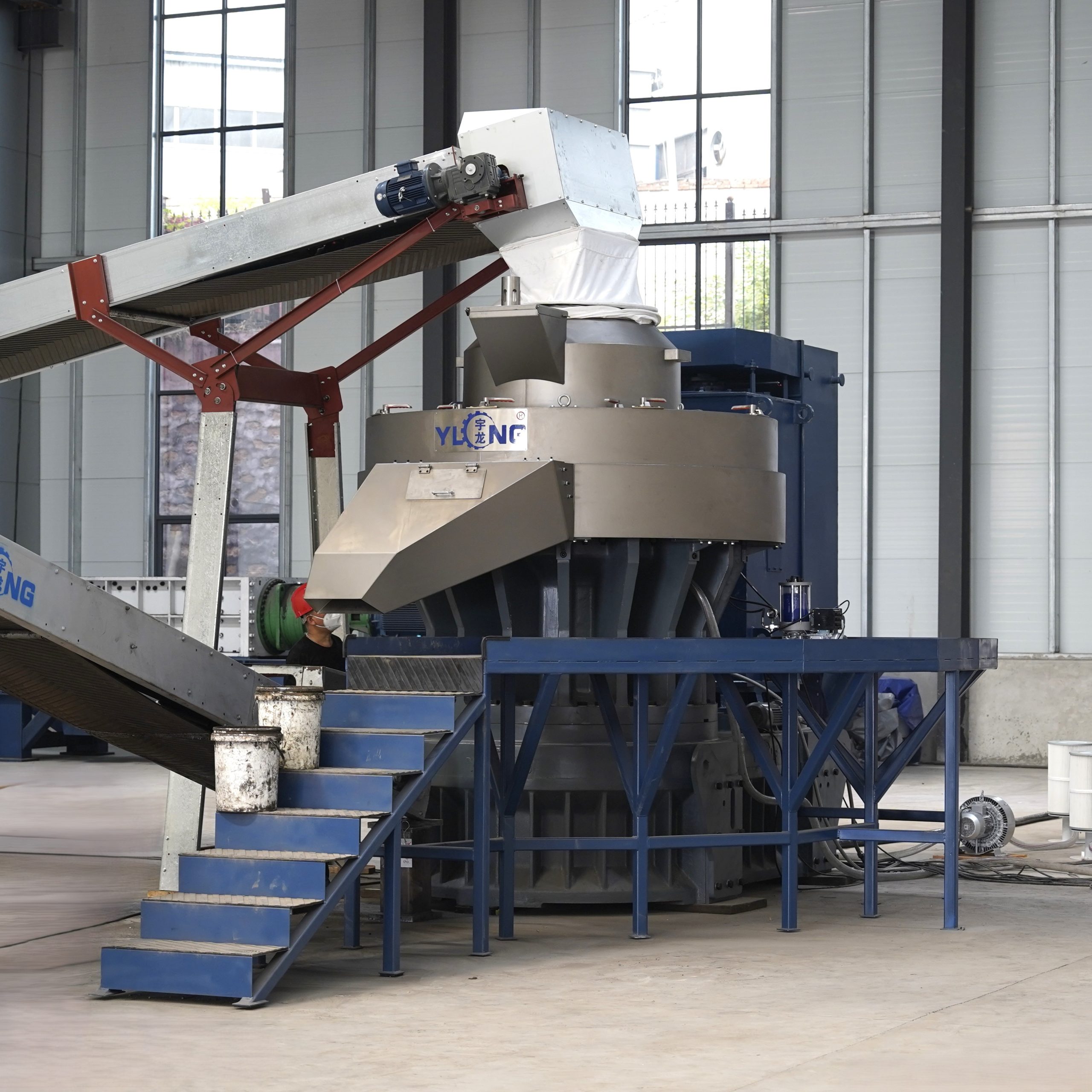

XGJ1200 Pellet Making Machine

The high energy efficiency and high capacity of large equipment with high-voltage motors and high power can save more operational and maintenance space and reduce labor costs.

A larger feeding space can fully increase the feeding amount of low-density raw materials, allowing the pressing of larger raw materials, reducing crushing costs, and further increasing production capacity.

The discharging system is made of SUS304 stainless steel and adopts a rotating disc structure. The discharging process is continuous and smooth, with a lower pellet breakage rate.

The bearing chamber structure is multi-reinforced, impact-resistant, and stable in operation.

Model	Power(kw)	Capacity(t/h)
XGJ560	90,132,160	1-1.5,1.5-2,2-2.5
XGJ850	250	3-4
XGJ1200	710, 800	10-15

Production Advantage

Strict quality management system+High quaility raw materials+Precise processing equipment=High quality pellet machine.

Wood Pellet Machine Base

Super high machining accuracy

The main shaft of the pellet machine

The main shaft is thickened by 15%

Roller of pellet machine

The surface of the pressure roller adopts robot surfacing welding wear-resistant materials, which greatly improves the life of the roller.

Pellet machine ring die

High wear-resistant stainless steel material, vacuum quenching, ultra-high-speed gun drilling, high-quality hole finish.

Laser Cutting

The cutting surface of the laser cutting machine is smooth: the cutting surface has no burrs, and the surface roughness of the incision is generally controlled within Ra6.5.
